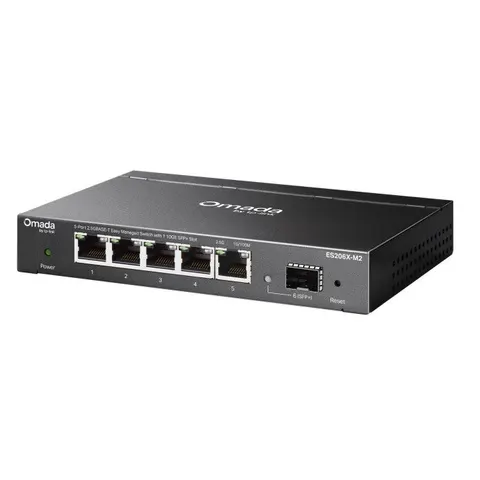

TP-Link Omada ES206X-M2 network switch Managed L2 2.5G Ethernet (100/1

5× 2.5 Gbps RJ45 Ports 1× 10 Gbps SFP+ Slot Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features Centralized Cloud Management via the web or the Omada app† VLAN, Port Isolation, Cable Test△, QoS△ for reliable networking Automatic Loop Prevention and IGMP Snooping Fanless design for silent operation Durable metal casing and desktop/wall mounting design Management features Switch type Managed Switch layer L2 Quality of Service (QoS) support Yes Ports & interfaces Basic switching RJ-45 Ethernet ports quantity 5 Basic switching RJ-45 Ethernet ports type 2.5G Ethernet (100/1000/2500) SFP+ module slots quantity 1 Network Networking standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1ab 10G support No Port mirroring Yes Broadcast storm control Yes Link aggregation Yes Flow control support Yes VLAN support Yes Virtual LAN features MTU VLAN, Port-based VLAN Data transmission MAC address table 16000 entries Switching capacity 45 Gbit/s Forwarding rate 33.48 Mpps Store-and-forward Yes Jumbo frames support Yes Jumbo frames 10 Packet buffer memory 0.64 MB Security DHCP features DHCP client IGMP snooping Yes Design Form factor Desktop/Wall-Mounting Product colour Black LED indicators Yes Performance Flash memory 64 MB Firmware upgradeable Yes Mean time between failures (MTBF) 1223587 h Power Power source AC AC input voltage 100 - 240 V Power consumption (max) 5.63 W Power over Ethernet (PoE) Power over Ethernet (PoE) No Operational conditions Operating temperature (T-T) -5 - 40 °C Storage temperature (T-T) -40 - 70 °C Operating relative humidity (H-H) 10 - 90% Storage relative humidity (H-H) 5 - 90% Heat dissipation 19.21 BTU/h Weight & dimensions Width 158 mm Depth 100.7 mm Height 25.4 mm Weight 520 g General Product family Omada Certificates Certification CE, FCC, RoHS leaflet
