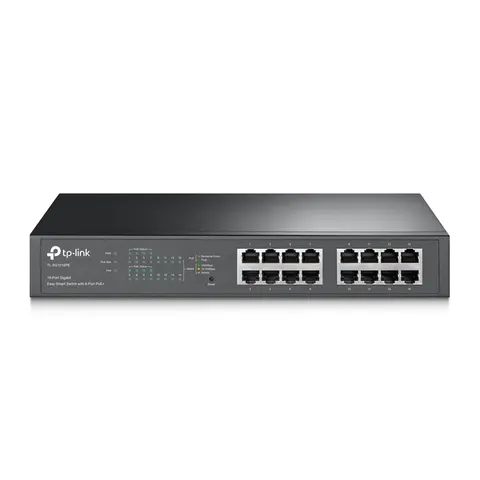

TP-Link TL-SG1016PE network switch Managed L2 Gigabit Ethernet (10/100

What This Product DoesThe TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 150 W*. up to 30 W per port. TL-SG1016PE powers more high-powered devices such as wireless Access Points (APs). IP Cameras or IP Phones. Moreover. with innovative energy-efficient technology. the TL-SG1016PE saves the power consumption. making it an eco-friendly solution for your business network.How This Product Works8 ports of TL-SG1016PE support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation. the electrical power is transmitted along with data in a single cable. allowing you to expand your network where there are electrical cables or outlets. where you wish to fix devices such as APs. IP Cameras or IP Phones.Overload ArrangementTL-SG1016PE has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices’ power consumption is greater than or equal to 150 W. a priority will be arranged among the 8 PoE+ ports. at which point the system will cut off the power of the lowest-priority port. Port Priority FunctionPriority (port 1>port 2>port 3>port 4> port 5>port 6>port 7>port 8): This function will help protect the system if the system power becomes overloaded. For example. Port 1. 2. 3. 4. and 6 are using 30 W (maximum power per port is 30 W). the system power is 150 W in total (PoE max LED will be green if all PoE PDs power consumption is >= 150W). If there is an additional PD inserted to Port 5 with 20 W then the system will cut off Port 6 to protect the system. this means Port 1. 2 .3. and 4 will use 120 W. and Port 5 will use 20 W. and no power will be supplied to Port 6.Easy To UseTL-SG1016PE is easy to install and use. It require
