Vent Axia Integra Heat Recovery Unit 456864

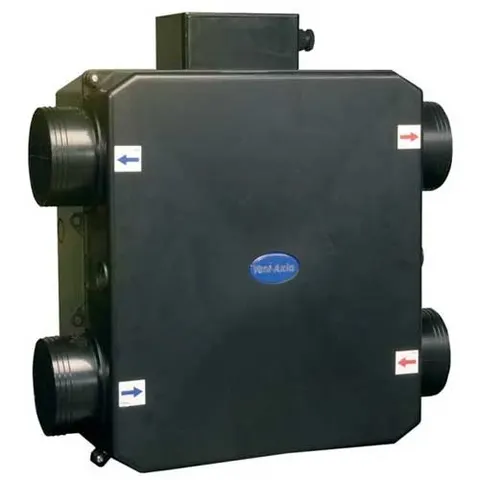

The Vent-Axia Integra (456864) is a whole house MVHR unit for smaller residential or commercial applications up to 180 square metres, delivering up to 70% heat recovery and airflow up to 49 l/s with low power consumption. It is completely self-contained, with two integral speed-controllable centrifugal fans and a high-efficiency polymeric heat exchanger.The compact heat exchange cube interleaves outgoing moist air with incoming fresh air, warming one from the other without the two streams mixing, so heat is saved on room heating. Effective condensation control and a summer mode make it well suited to flats and internal rooms in residential, commercial, educational or leisure buildings, used with a 150VA transformer for full controllability. Up to 70% heat recovery Up to 49 l/s Summer mode and condensation control Specifications Brand Vent-Axia Model Integra 456864 Heat recovery efficiency Up to 70% Max airflow Up to 49 l/s Heat exchanger High-efficiency polymeric cube Duct size 100mm Controls Speed controllable via 150VA transformer, summer mode Weight 6.5kg Suitable for Applications up to 180 square metres Warranty 1 Year Manufacturer Manuals & GuidesVent-Axia Integra 456864 DatasheetVent-Axia Integra 456864 Installation
