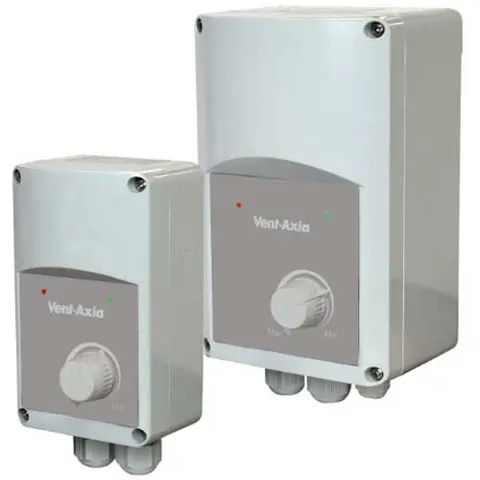

Vent-Axia SC5050TK Single Phase Electronic Speed Controller - 5 Amps

The Vent-Axia SC5050TK is a single phase electronic speed controller rated at 5 Amps, giving infinitely variable speed control of AC ventilation fans. It automatically detects the supply voltage and provides a stepless output so the fan can be set to any speed across its range.The TK version adds thermal motor protection, monitoring the motor thermal contacts and shutting down if it overheats. A 230VAC alarm output and a run and fault LED give clear status indication, with kick start and soft start to protect the motor on start-up. 5 Amp Electronic speed controller Single phase Suitable for AC single phase ventilation fans up to 5 Amps Fans with thermal contacts requiring motor protection Specifications Brand Vent-Axia Model SC5050TK Type Electronic speed controller Phase Single phase Maximum Current 5 Amps Supply Voltage 230VAC Speed Control Infinitely variable, stepless output Motor Protection TK thermal motor protection Indication Run and fault LED, alarm output Start Features Kick start and soft start Warranty 1 Year Manufacturer Manuals & GuidesVent-Axia SC5050TK Data Sheet
