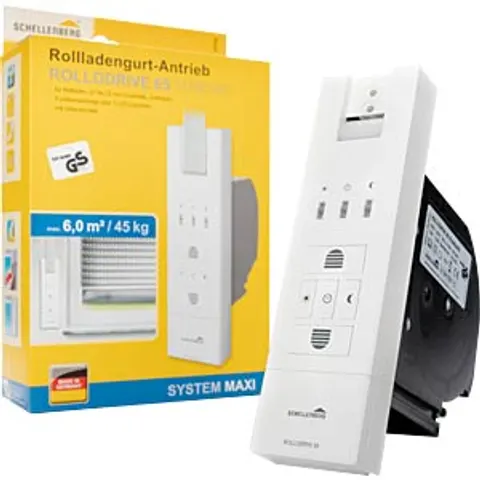

SCHELLENBERG AS 22765 - Roller shutter belt drive RolloDrive 65 Standard

" For motorization of roller shutters with inlet winder motorized inlet winder for plastic roller shutters up to 6 m² area automatic timer, safety shutdown and optional light control Maxi roller shutter system with 23 mm belt width, hole spacing 165 or 185 mm Power supply via mains cable, end position safety device in case of power failure The Schellenberg RolloDrive 65 STANDARD makes it possible to operate a roller shutter conveniently at the touch of a button or with an automatic timer. The electric belt winder is suitable for plastic roller shutters up to an area of 6 m² and is compatible with the Maxi roller shutter system with a belt width of 23 mm. It completely replaces an existing mechanical inlet winder. The RolloDrive 65 STANDARD can be installed in all standard wall boxes with an opening height of at least 134 mm and has hole spacing of 165 or 185 mm. It is also ideal for rental properties, as it is not necessary to open the roller shutter box for installation. The integrated automatic timer makes it possible to raise or lower the roller shutter automatically at desired times. For this in each case an up and/or a departure is programmable. If the shutter blocks or encounters an obstacle, the electric belt winder stops automatically. Large buttons on the RolloDrive 65 STANDARD make it easy to operate and set the end positions. The power supply is via a power cable, should this be interrupted, the stored end positions are retained. As an extension, the roller shutter can be controlled according to the position of the sun with a separately available sun sensor. Thus, for example, furnishings and plants can be protected from excessive solar radiation. Technical details Dimensions (W x H x D): 59 x 210 x 34 mm Installation dimensions (D x H): 139 x 132 mm Hole spacing: 165 mm or 185 mm Roller shutter system: Maxi Area for plastic roller shutters: max. 6.0 m² Area for aluminum/wood roller shutters: max. 3.0 m² Shutter weight plastic: max. 4.5 kg/m² shutter weig
