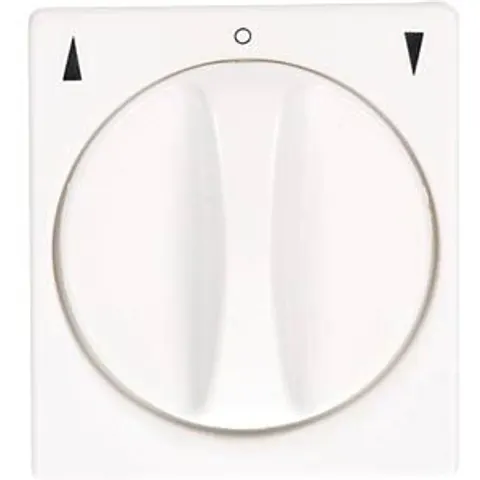

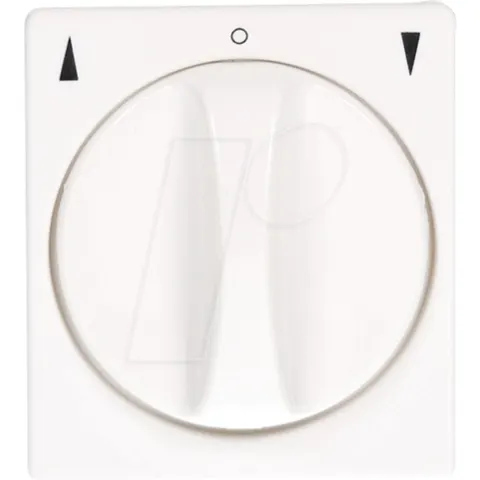

SCHELLENBERG AS 23003 - Surface mounted roller shutter switch, white

" For manual control of a Schellenberg roller shutter motor For manual up and down control of a roller shutter motor toggle switch with easy changeover from push-button to latching function simple surface mounting retrofitting possible compatible with most mechanical roller shutter motors The roller shutter switch enables manual up and down control of a roller shutter with motorization. With the help of an adapter inside the shutter switch, the shutter switch can be changed from a push-button to a latching function. The push-button function requires the roller shutter switch to be held down to reach the desired end position. With the latching function, on the other hand, the switch engages and moves to the desired end position. The roller shutter switch is suitable for dry interiors in accordance with protection class IP20 and is surface-mounted. It is an ideal control element for the STANDARD and PLUS models of Schellenberg roller shutter motors and is compatible with most mechanical roller shutter motors from other manufacturers. Technical details Dimensions: 56 x 63 x 41 mm Color: white Operating voltage: 230 V/50 Hz Rated current: 10 A Connections: max. 1,5 mm Switching contact: max. 8A (4 A ind.) Ambient temperatures -30 °C to +50 °C Protection class: IP20, only for dry rooms Functions: Pushbutton or latching function Type: changeover contact Number of connection poles: 5 Package contents: 1 x roller shutter switch "
