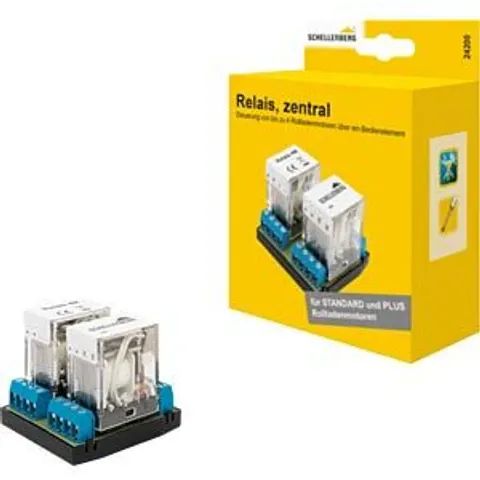

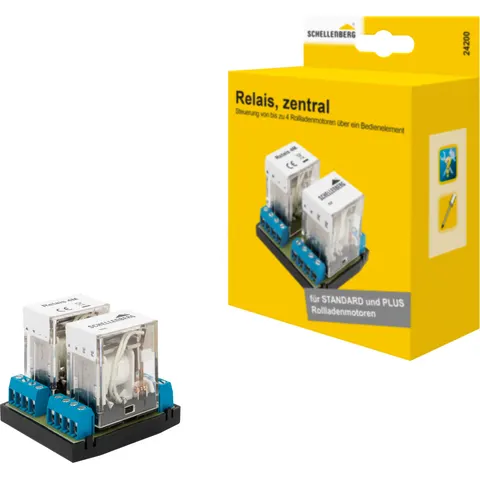

SCHELLENBERG AS 24200 - Roller shutter isolating relay, central, 4-fold

" Centralized group control of up to 4 tubular motors Simultaneous control of up to four tubular motors Ideal for Schellenberg STANDARD tubular motors Total switching capacity of max. 8 A (2 A per actuator) Installation in a flush-mounted box with a diameter of 70 mm and a depth of 50 mm Installation in a junction box with dimensions of at least 70 x 70 mm With the roller shutter relay, you can simultaneously control up to four tubular motors via a single control unit, e.g., using Schellenberg roller shutter switches or timers. The relay is designed for group control of Schellenberg STANDARD tubular motors. It requires an operating voltage of 230 V AC/50 Hz and has a total switching capacity of up to 8 A, which corresponds to 2 A per roller shutter motor. The 4-channel roller shutter relay is installed in a flush-mounted box with a diameter of 70 mm and a depth of 50 mm. Alternatively, it can be installed in a junction box measuring 70 x 70 mm. Technical Details Operating voltage: 230 V/50 Hz Total switching capacity: max. 8 A (2 A per tubular motor) Terminals: Screw terminals Dimensions (W x H x D): 55 x 50 x 42 mm Protection class: IP20, for dry rooms only Flush-mount box dimensions: Ø 70 mm, depth: 50 mm Dimensions of junction box: 70 x 70 mm Package contents: 1 x roller shutter relay 1 x installation manual with wiring diagram "
