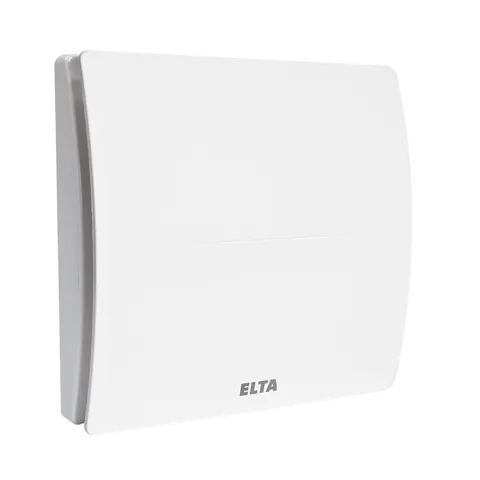

Elta DEXA dMEV 150 Continuous Running Extractor Fan with Humidity - 150mm

The Elta DEXA dMEV 150 is a 150 mm continuous running decentralised extract fan for bathrooms, kitchens and utility rooms. It trickles quietly all day on an EC motor using as little as 0.7W, then boosts automatically on humidity or its intelligent run-on timer. It replaces the FLUX dMEV range. 150 mm continuous running trickle and boost dMEV EC motor from 0.7W, up to 50 l/s (180 m³/h) Built-in intelligent humidity control and run-on timer Adjustable speeds plus constant flow mode to compensate for duct length and wind Wall, ceiling or window mounting (window kit 410-WKG150) Listed on the SAP PCDB Suitable for Bathrooms, en-suites and toilets Kitchens and utility rooms New build and refurbishment where continuous extract is specified Installation Mount on a wall or ceiling, or through glazing with the Elta 410-WKG150 window kit. Set the trickle and boost rates on commissioning to meet the room's Part F extract rate. The front cover comes off without tools for cleaning. Installation should be carried out by a qualified electrician. Specifications Brand Elta Model DEXA dMEV 150 Type Continuous running dMEV extract fan Spigot 150 mm Supply 220-240V 50/60Hz Motor EC, sealed for life ball bearings Airflow 5 to 50 l/s (18 to 180 m³/h) Power 0.7 to 6.5 W SFP 0.06 to 0.14 W/(l/s) Sound Below 9 to 36 dB(A) @ 3m Controls Intelligent humidistat and run-on timer IP rating IPX4 wall, IPX2 ceiling (IPX4 with ceiling gasket kit) Max ambient +40°C Colour White RAL 9010 Weight 1.2 kg Matching accessories Window kit 410-WKG150. Manuals & GuidesElta DEXA dMEV Datasheet
