Elta Matching Flanges 500mm

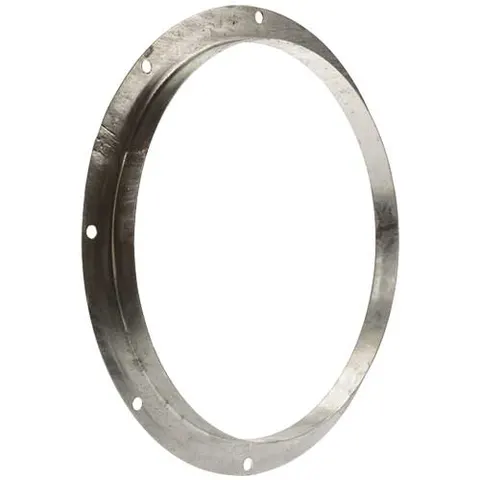

The Elta 061B-0500 is a 500mm matching flange that bolts directly to the case flange of an Elta fan, giving an easy, square connection to ductwork, a flexible connector or a silencer.It is made from 2.0mm hot dip galvanised steel with an outside diameter of 585mm and 12 fixing holes of 12mm diameter on a 560mm PCD, and weighs 2.6 kg. One flange fits one end of the fan. 500mm matching flange Fits directly to fan case flange Hot dip galvanised steel What it is best used forConnecting a 500mm Elta long cased or inline fan to 500mm ductwork, a flexible connector or a silencer, in kitchen extract, car park, plant room, warehouse and general supply or extract systems. Elta list the 061B matching flanges on the accessory tables for their Revolution SLC and SLCX ATEX long cased fans and the SEL mixed flow fans from 450mm up.One flange connects one side of the fan, so order two for a ducted inlet and outlet. Elta's SCD and SDA cased fans take their own 061A flanges, not this 061B part. Check the fan size and drilling before ordering.Why choose this over alternativesCompatible 500mm fans on eFans that list 061B matching flanges: SLC500 three phase AC, SLC500 EC, SLCX500 ATEX and SEL500 mixed flow. Using Elta's own flange means the hole pattern suits the fan case without drilling, and the hot dip galvanised finish resists corrosion in plant rooms and ducts.Neighbouring sizes: 450mm and 560mm. For a vibration break between fan and duct, Elta pair the flange with a flexible connector; ask us for the matching 063 flexible connection or the APK ancillary pack, which bundles flanges, flexible connections, anti-vibration mounts and feet.Installation notes Bolt the flange to the fan's case flange, lining up the equally spaced fixing holes; use one flange per ducted side. Seal the joint between flange and fan case with a suitable gasket or sealant so the connection is airtight. Fit a flexible connector between the flange and the ductwork to stop fan vibration travelling into the duct.
