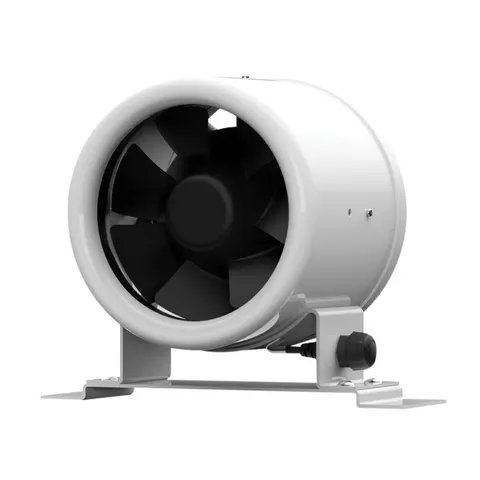

Elta Jetflow SJMF 150 Inline Mixed Flow Fan Single Phase EC - 150mm

The Elta Jetflow SJMF 150 is a high-efficiency EC in-line mixed-flow duct fan. Its jet-design double mixed-flow impeller is integrated and directly driven by a brushless EC motor, delivering up to 518 m³/h through 150 mm duct with high static pressure. Airflow up to 518 m³/h; 150 mm connection Brushless EC motor, direct drive; IPX4 High-efficiency jet-design double mixed-flow impeller Sealed-for-life heavy-duty NWB bearings; suitable up to +60°C Fitted with a 1.5 m mains lead and UK 3-pin plug (3A fuse) for easy connection and isolation Suitable for Commercial kitchens, catering, factories, schools, retail and commercial units Higher-pressure duct extract where energy efficiency matters Installation Fitted with a 1.5 m mains lead and BS1363 UK 3-pin plug (3A fuse), convenient for connecting to a socket and providing a means of isolation/disconnection. Install per the supplied instructions. Specifications Brand Elta Model Jetflow SJMF150 Type in-line mixed-flow duct fan (EC) Duct connection 150 mm Airflow (max) 518 m³/h Motor Brushless EC, direct drive (IPX4) Impeller High-efficiency jet-design double mixed-flow Bearings Sealed-for-life heavy-duty NWB Max air temperature +60°C Supplied with 1.5 m mains lead, UK 3-pin plug (3A fuse) Warranty 2 Year Manufacturer Manuals & GuidesElta Jetflow SJMF 150 DatasheetElta Jetflow SJMF 150 Installation Guide
