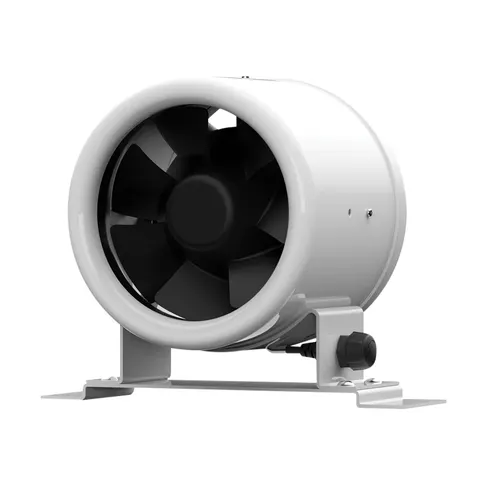

Elta Jetflow SJMF 355 Inline Mixed Flow Fan Single Phase EC - 355mm

The Elta Jetflow SJMF355 is a high efficiency EC inline mixed flow fan for 355 mm circular duct. A jet design double mixed flow impeller, directly driven by a brushless EC motor, moves up to 1.24 m³/s (approx. 4,464 m³/h) at high static pressure, with low specific fan powers for Building Regulations compliance. 355 mm inline mixed flow duct fan Brushless EC motor, direct drive, IPX4 High efficiency jet design double mixed flow impeller Airflow up to 1.24 m³/s (approx. 4,464 m³/h) 1.5m mains lead with UK 3-pin plug (3A fuse) Lightweight galvanised steel casing, mounts at any angle Suitable for Schools, colleges, offices, shops and hotels Restaurants, cafes and general commercial HVAC Higher pressure duct runs where energy efficiency matters Installation Mount in-line in 355 mm duct on the brackets supplied (any angle) and connect with Elta 018-355-CLAMP fast clamps. The fan is supplied running at a fixed speed with a 1.5m lead and UK plug for easy isolation. For variable speed, plug the detachable 5m jack lead into an Elta 149-POT-10 controller, a 0-10V signal or PWM. Specifications Brand Elta Model Jetflow SJMF355 Type Inline mixed flow duct fan (EC) Duct connection 355 mm Motor Single Phase EC, 220-240V 50/60Hz Max airflow 1.24 m³/s (approx. 4,464 m³/h) Max static pressure Up to 548 Pa Speed 3,000 rpm at 10V Input power 0.538 kW (full speed) Peak current 3.8 A SFP 0.43 W/(l/s) at best efficiency point Sound pressure 64 dBA inlet / 66 dBA outlet @ 3m Motor protection IPX4, sealed for life bearings Max air temperature +60°C Weight 12 kg Warranty 2 Year Manufacturer Matching accessories EC controller 149-POT-10-MI, fast clamps 018-355-CLAMP, backdraught damper 018-355-DAMPER, panel filter 018-0355-FILT-P, electric heater battery 018-CV35-90-3M. Manuals & GuidesElta Jetflow SJMF DatasheetElta Jetflow SJMF Installation Guide
