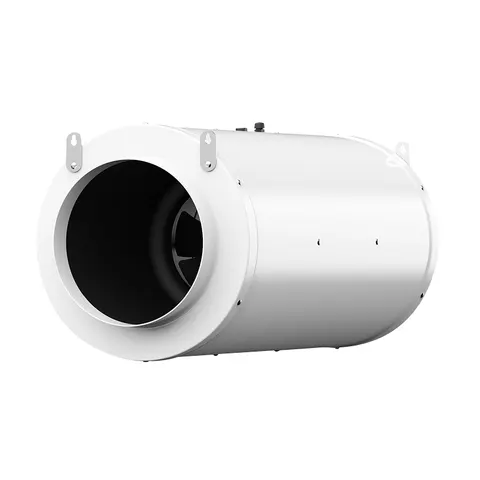

Elta Silent Jetflow SJMF 150-S Inline Mixed Flow Fan Single Phase EC - 150mm

The Elta Jetflow Silent SJMF150-S is a high efficiency EC inline mixed flow fan for 150 mm circular duct. A jet design double mixed flow impeller, directly driven by a brushless EC motor, moves up to 0.145 m³/s (approx. 522 m³/h) at high static pressure, in an acoustically designed casing for low noise. 150 mm inline mixed flow duct fan Brushless EC motor, direct drive, IPX4 High efficiency jet design double mixed flow impeller Airflow up to 0.145 m³/s (approx. 522 m³/h) 1.5m mains lead with UK 3-pin plug (3A fuse) Acoustically designed casing for low noise Suitable for Schools, colleges, offices, shops and hotels Restaurants, cafes and general commercial HVAC Higher pressure duct runs where energy efficiency matters Installation Mount in-line in 150 mm duct on the brackets supplied (any angle) and connect with Elta 018-150-CLAMP fast clamps. The fan is supplied running at a fixed speed with a 1.5m lead and UK plug for easy isolation. For variable speed, plug the detachable 5m jack lead into an Elta 149-POT-10 controller, a 0-10V signal or PWM. Specifications Brand Elta Model Jetflow Silent SJMF150-S Type Silent inline mixed flow duct fan (EC) Duct connection 150 mm Motor Single Phase EC, 220-240V 50/60Hz Max airflow 0.145 m³/s (approx. 522 m³/h) Max static pressure Approx. 300 Pa Speed 4,900 rpm at 10V Input power 0.05 kW (full speed) Peak current 0.39 A SFP 0.28 W/(l/s) at best efficiency point Sound pressure 40 dBA @ 3m (full speed) Motor protection IPX4, sealed for life bearings Max air temperature +60°C Weight 5 kg Warranty 2 Year Manufacturer Matching accessories EC controller 149-POT-10-MI, fast clamps 018-150-CLAMP, backdraught damper 018-150-DAMPER, panel filter 018-0150-FILT-P, electric heater battery 018-CV15-27-1M. Manuals & GuidesElta Jetflow Silent SJMF DatasheetElta Jetflow SJMF Installation Guide
