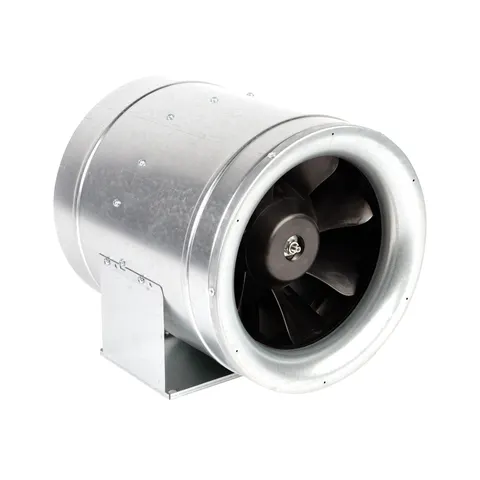

Elta Multiflow SEL450-1PEC Mixed Flow Inline Fan Single Phase EC - 450mm

The Elta Multiflow SEL450 is a duct-mounted mixed-flow inline fan for 450 mm ductwork that combines the high air volume of an axial fan with the higher static pressure of a centrifugal design. A high-efficiency diagonal mixed-flow impeller works with 3D stator guide vanes that recover dynamic pressure loss, giving strong performance from a compact casing that fits smaller ducting than an equivalent box fan. 450 mm duct connection; space-saving mixed-flow design Single-phase EC motor with fully variable speed control High-efficiency diagonal mixed-flow impeller with 3D stator guide vanes Static pressures up to 1400 Pa across the EC range Galvanised steel construction; rated for air up to +80°C IPX4 weather-resistant rating Suitable for Commercial and industrial supply or extract needing high pressure in a compact duct run Long duct runs, kitchen extract, car parks and general building-services ventilation Installation Mounts in-line in the ductwork in any orientation, with an integral IP44 terminal box for wiring. As a mains fan it should be installed on a suitable circuit by a qualified electrician. The EC motor gives fully variable speed control via a 0-10V signal or potentiometer. Specifications Brand Elta Model Multiflow SEL450 (SEL450-1PEC) Type Duct-mounted mixed-flow inline fan Duct connection 450 mm Motor Single-phase EC (fully variable speed) Impeller Diagonal mixed-flow with 3D stator guide vanes Max static pressure Up to 1400 Pa (EC range) Terminal box IP44 Weather rating IPX4 Max air temperature +80°C Warranty 1 Year Manufacturer Manuals & GuidesElta Multiflow SEL DatasheetElta Multiflow SEL Installation Guide
