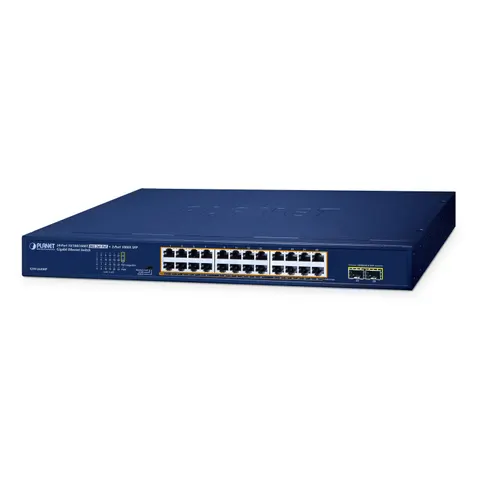

PLANET GSW-2620HP network switch Unmanaged 10G Ethernet

Cost-optimized. Configure-free Gigabit PoE+ Switch for System IntegratorsPLANET GSW-2620HP. an ideal Gigabit PoE Switch. provides a cost-effective advantage to local area networks of SMBs. Offering Layer 2 data packet switching and stable operation. this model also complies with IEEE 802.3at Power over Ethernet Plus (PoE+) at an affordable price. The GSW-2620HP is equipped with 24 10/100/1000BASE-T Gigabit Ethernet ports and 2 1000BASE-X SFP interfaces with inner power system. Its 24 Gigabit Ethernet ports are integrated with an 802.3at PoE+ injector function. It offers a rack-mountable. safe and reliable power solution for SMBs deploying Power over Ethernet networks. IEEE 802.3at PoE+ Compliant Power Source SwitchThe PoE in-line power following the IEEE 802.3at/af standard makes the GSW-2620HP able to deliver Gigabit speed data and up to 30 watts of power per port to 24 PoE compliant powered devices (PDs) with a combined power output budget of up to 250 watts. The GSW-2620HP provides more flexibility in power requirement for all kinds of PDs with affordable installation costs.Ethernet Data Transmit Distance ExtensionThe built-in solid DIP switch provides “Standard”. “VLAN” and “Extend” operation modes. The GSW-2620HP operates as a normal IEEE 802.3at PoE+ switch in the “Standard” operation mode. The “VLAN” operation mode features with port-based VLAN function that helps to prevent the IP camera’s multicast or broadcast storm from influencing each other.In the “Extend” operation mode. the GSW-2620HP operates on a per-port basis at 10Mbps duplex operation but supports 25-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature. the GSW-2620HP provides an additional solution for 802.3at PoE+ distance extension. thus saving the cost of Ethernet cable installation.Intelligent Powered Device Alive CheckThe GSW-2620HP can monitor connected PD status in real time via PD alive check function. Once
