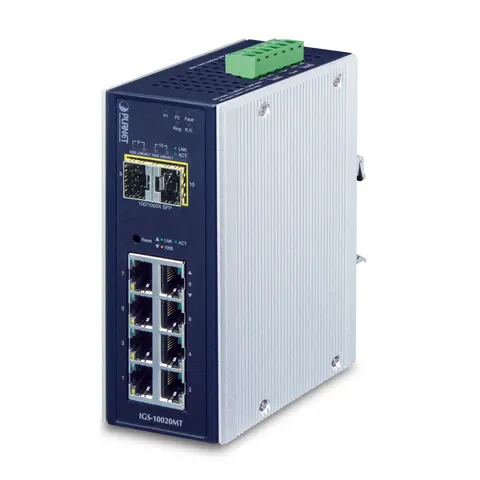

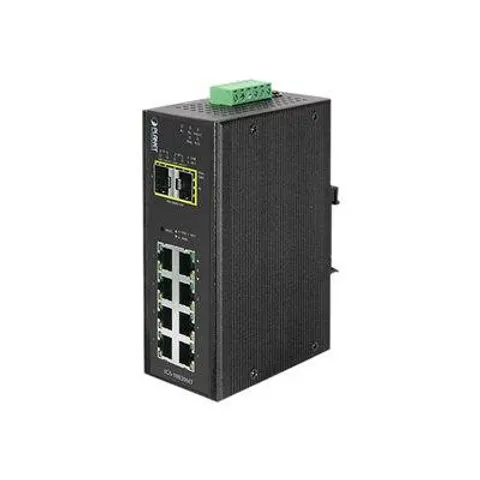

PLANET IGS-10020MT network switch Managed L2+ Gigabit Ethernet

PLANET IGS-10020MT is a fully-managed Gigabit fiber switch usually designed for the industrial network. It features 8 10/100/1000BASE-T copper ports. 2 100/1000/2500BASE-X SFP ports and redundant power system in an IP30 rugged but compact-sized case that can be installed in any difficult environment without space limitation. Within such favorable enclosure. it provides user-friendly yet advanced IPv6/IPv4 management interfaces. abundant L2/L4 switching functions and Layer 3 static routing capability. The IGS-10020MT can operate stably under the temperature range from -40 to 75 degrees C and allows either DIN-rail or wall mounting for efficient use of cabinet space. With 2 100/1000/2500BASE-X SFP fiber slots. it can be flexibly applied to extend the connection distance.Cybersecurity Network Solution to Minimize Security RisksThe cybersecurity feature that virtually needs no effort and cost to have includes the protection of the switch management and the enhanced security of the mission-critical network. Both SSH and TLS protocols are utilized to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping. IP Source Guard. ARP Inspection Protection. 802.1x port-based and MAC-based network access control. RADIUS and TACACS+ user accounts management. SNMPv3 authentication. and so on to complement it as an all-security solution. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before.Redundant Ring. Fast Recovery for Surveillance SystemThe IGS-10020MT supports redundant ring technology and features strong rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology. Spanning Tree Protocol (802.1s MSTP). and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh fa
