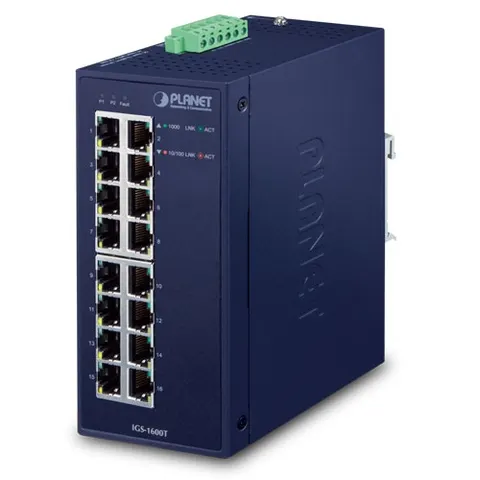

PLANET IGS-1600T network switch Unmanaged L2 Gigabit Ethernet

PLANET IGS-1600T Industrial high-density 16-port 10/100/1000T Gigabit Ethernet Switch is equipped with a rugged IP30 metal case for stable operation in heavy industrial demanding environments. Thus. the IGS-1600T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curbside traffic control cabinets. Industrial-grade. Flexible and Environmentally-hardened Design The IGS-1600T possesses an integrated power supply source with a wide range of voltages (12 to 48V DC or 24V AC) for worldwide high availability applications requiring dual or backup power inputs. Being able to operate under wide temperature range from -40 to 75 degrees C. the IGS-1600T can be placed in almost any difficult environment. The IGS-1600T also allows either DIN rail or wall mounting for efficient use of cabinet space. Robust Protection The IGS-1600T provides a contact discharge of ±6KV DC and air discharge of ±6KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks. making sure the flow of operation does not fluctuate. Dual Power Input for High Availability Network System The IGS-1600T features a strong dual power input system with wide-ranging voltages (12V~48V DC or 24V AC) incorporated into customer’s automation network to enhance system reliability and uptime. In the example below. when power supply 1 fails to work. the hardware failover function will be activated automatically to keep powering the IGS-1600T via power supply 2 alternatively without any loss of operation. Energy Savings The IGS-1600T. integrated with advanced green networking technologies and IEEE 802.3az protocol based power savings. is able to provide power savings of up to 50% but maintain high performance efficiently. - Link Down power savings The Link Down power savings goes beyond IEEE specifications to automatically lower power
