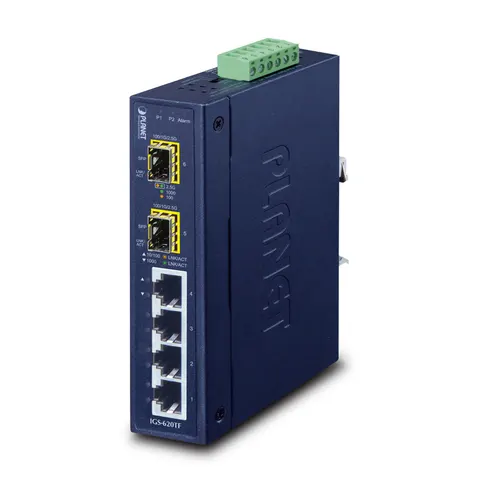

PLANET IGS-620TF network switch Unmanaged Gigabit Ethernet

Flexible. Reliable and Industrial-grade Network Distance Extension SolutionPLANET IGS-620TF is an Industrial 6-port full Gigabit Ethernet Switch providing non-blocking wire-speed performance and great flexibility for Gigabit Ethernet extension in harsh industrial environment. It provides 4-port 10/100/1000BASE-T RJ45 copper and 2 extra 100/1000/2500BASE-X SFP fiber optic interfaces delivered in an IP30 rugged strong case with redundant power system. The IGS-620TF is well suited for applications like deploying surveillance system. and securing control and wireless service in climatically demanding environments with wide temperature range from -40 to 75 degrees C. Fiber Optic Link Capability Enables Extension of Network DeploymentThe two SFP ports are compatible with 100BASE-FX. 1000BASE-X and 2500BASE-X SFP (small form factor pluggable) fiber-optic transceivers. The fiber optic uplink capability guarantees the throughput to all nodes hooked into the network and the Gigabit Ethernet distance can be extended from 300 meters (Multi-mode fiber cable) to 10/20/30/40/50/70/120 kilometers (Single-mode fiber cable). The Fast Ethernet distance can also be extended from 2km (Multi-mode fiber cable) to 20/40/60 kilometers (Single-mode fiber cable). They are well suited for applications within the factory data centers and distributions. Adjustable 6-Port Switch Mode or 4 + 2 Fiber Redundant ModeThe two SFP ports allow to change the operation mode with its built-in DIP switch. Via the built-in DIP switch. the IGS-620TF can be configured as 6-port Ethernet switch or 4+2 fiber redundant mode. With the 6-port switch mode. the IGS-620TF can operate in Store-and-Forward mechanism with high performance; on the other hand. when in the 4+2 fiber redundant mode. it provides rapid fiber redundancy of link for highly critical Ethernet applications. The redundant mode also supports auto-recovering function. If the destination port of a packet is link-down. it will forward the packet to the o
