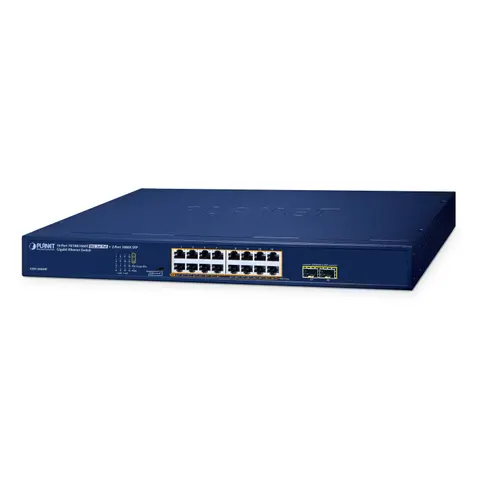

PLANET GSW-1820HP network switch Unmanaged Gigabit Ethernet

Centralized Power Management for Gigabit Ethernet PoE NetworkinTo facilitate 30W PoE power network applications with Gigabit speed transmission. PLANET GSW-1820HP is equipped with 16 10/100/1000BASE-T Gigabit Ethernet ports and 2 1000BASE-X SFP interfaces with the inner power system. With a total of 250 watts of PoE budget. it features high-performance Gigabit IEEE 802.3af PoE (up to 15.4W) and IEEE 802.3at PoE+ (up to 30W) capabilities on all ports. By offering reliable switching technology and advanced networking features. the GSW-1820HP optimizes the installation and power management of network devices such as wireless access points. VoIP phones. and security cameras. It also eliminates time and cost of deployment by integrating power and data switching into one unit and freeing network devices from restrictions of power outlet locations and the additional AC wiring. Perfect Integrated Solution for PoE IP SurveillanceThe GSW-1820HP brings an ideal secure surveillance system at a lower total cost. The GSW-1820HP provides 16 10/100/1000Mbps 802.3at PoE+ ports able to feed sufficient PoE power for 16 IEEE 802.3af/IEEE 802.3at PoE+ IP cameras at the same time. It is also able to connect with one 16-channel NVR or two 8-channel NVRs. uplinked to backbone switch and the monitoring center. With such high-performance switch architecture. the recorded video files from the PoE IP cameras can be saved to the NVR system where the administrator can control and monitor the surveillance images in both the local LAN and remote sitesEthernet Data Transmission Distance ExtensionThe DIP switch provides “Standard”. “VLAN” and “Extend” operation modes. - The GSW-1820HP operates as a normal IEEE 802.3at PoE+ switch in the “Standard” operation mode. - The “VLAN” operation mode features with port-based VLAN function that helps to prevent the IP camera’s multicast or broadcast storm from influencing each other.- In the “Extend” operation mode. the GSW-1820HP operates on a per-port basis
