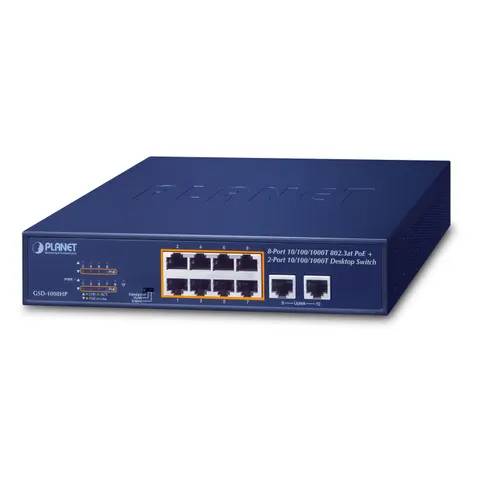

PLANET GSD-1008HP network switch Unmanaged Gigabit Ethernet

Flexible. Extendable and Centralized Power DistributionPLANET GSD-1008HP provides eight 10/100/1000T ports featuring 32-watt 802.3at PoE+. a total 120-watt PoE budget and extra two uplink ports to fulfill the demand of sufficient PoE power for HD IP surveillance and Wi-Fi system in a small-scale but high-performance network. With the same desktop-sized and compact metal housing. it makes the placement of the unit convenient and provides a quick and easy PoE PDs deployment with power feeding.Ethernet Data Transmission Distance ExtensionThe built-in solid DIP switch provides “Standard”. “VLAN” and “Extend” operation modes. The GSD-1008HP operates as a normal IEEE 802.3at PoE+ switch in the “Standard” operation mode. The “VLAN” operation mode features port-based VLAN function that helps to prevent the IP camera’s multicast or broadcast storm from influencing each other.In the “Extend” operation mode. the GSD-1008HP operates on a per-port basis at 10Mbps duplex operation but supports 20-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature. the GSD-1008HP provides an additional solution for 802.3at PoE+ distance extension. thus saving the cost of Ethernet cable installation. Furthermore. its VLAN isolation function isolates each port so as to prevent broadcast storm and defend DHCP spoofing in the “Extend” operation mode.Two Gigabit Uplink PortsThe GSD-1008HP comes with two uplink ports with 1000Mbps transfer rate to ensure high-speed data and video transmission. reliable assurance for connection between the surveillance system and outside network where the eight PoE+ ports can be used to their full potential.Powered Device Alive CheckThe GSD-1008HP adopts not only Power over Ethernet technology. but also automated PD monitoring and real-time PoE status.The PD alive check feature is applied in Standard. VLAN and Extend modes. After the PoE of the port is powered on. the device starts to det
