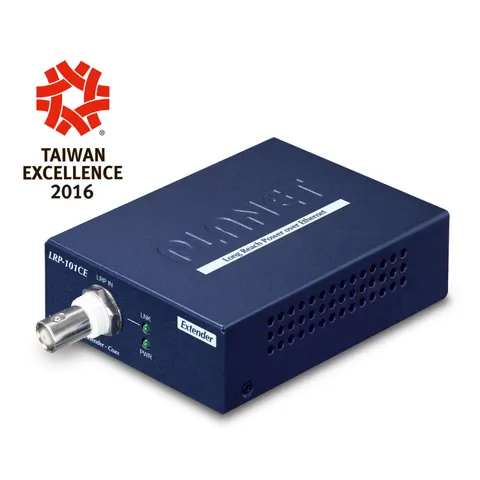

PLANET LRP-101CE network extender Network transmitter Blue 100 Mbit/s

PLANET Technology Long Reach PoE Solution enables all enterprises and network service providers to set up an IP infrastructure in a remote location where 802.3af/at PoE compliant powered devices can receive both data and power via PLANET switches. and PLANET LRP extenders and injectors over a long distance but not limited to the normal 100 meters.Data and Power Transmitted over Long DistancePLANET LRP-101CE. a PLANET Long Reach PoE solution. is a single-port 802.3at PoE+ Extender that is installed at a remote location connecting to an PoE IP camera or PoE wireless AP. The LRP-101CE has to work with PLANET single-port Long Reach PoE Injector or Multiple-channel Long Reach PoE Switch to be able to simultaneously transmit both data and power to a PD over a distance of up to 1.000m (3.280ft) over coaxial cable. The LRP-101CE provides a maximum of 25-watt power output over Ethernet cable to a remote PoE IP camera. PoE wireless AP or access control systems complied with 802.3af/at PoE.Daisy-chaining Multiple NodesPLANET Long Reach PoE solution can easily build a power system for centrally-controlled IP cameras in a high availability network infrastructure. It gives users the flexibility to expand small area network with BNC T-connector for sharing four nodes per port when needed.IP Ethernet and Power over Long Existing Coaxial CableA normal UTP cable can only be extended up to 100 meters. but the LRP-101CE. when working with the LRP Injector or LRP Switch. can extend PoE networking up to 1.000 meters (3.280ft) over 75 ohm coaxial cable with stable. high-quality video transmission. It eliminates the need for an additional electrical outlet as its single power source can provide power to a PoE PD at long range via the LRP-101CE.Stable Operating Performance under Difficult EnvironmentsPLANET Long Reach PoE Extender is the perfect solution for extended data and power transmission for warehouses. parking lots. campuses. casinos. and many more. It can operate stably under tempe
