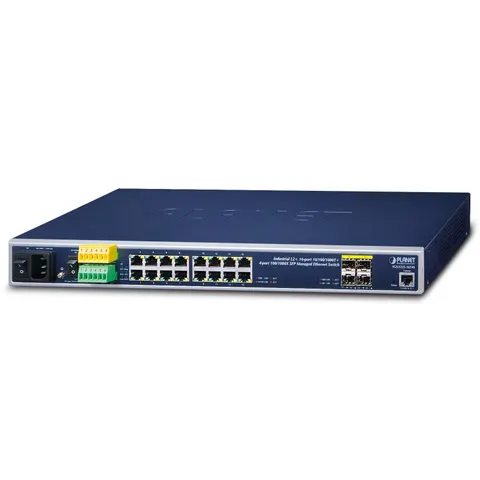

PLANET IGS-5225-16T4S network switch Managed L2+ Gigabit Ethernet (10

PLANET IGS-5225-16T4S. a new industrial Layer 2+ managed Gigabit Switch. features 16 10/100/1000Mbps ports and 4 100/1000X SFP ports. and supports static Layer 3 routing in a 1U case. With a total switch fabric of 40Gbps. the IGS-5225-16T4S can handle large amounts of data in a secure topology linking to an industrial backbone or high capacity servers. The IGS-5225-16T4S is capable of providing non-blocking switch fabric and wire-speed throughput in the temperature range from -40 to 75 degrees C without any packet loss and CRC error. It greatly simplifies the tasks of upgrading the industrial LAN for catering to increasing bandwidth demands. Furthermore. it adopts user-friendly “Front Access” design for easy wiring and maintenance of the IGS-5225-16T4S when placed in the cabinet. AC and DC Redundant Power to Ensure Continuous Operation The IGS-5225-16T4S possesses a 100~240V AC power supply and dual 36~60V DC power supply utilized as redundant power supply to ensure its continuous operation. Its redundant power system is specifically designed to handle the demands of high-tech facilities requiring the highest power integrity. Furthermore. with the 36~60V DC power supply implemented. the IGS-5225-16T4S can be applied as a telecom level device and placed in almost any difficult environment. Digital Input and Digital Output for External Alarm To help the network administrators efficiently manage unexpected network situations. the IGS-5225-16T4S provides Digital Input and Digital Output for external alarm device on the front panel. The Digital Input can be used to detect and log the status of the external devices such as door intrusion detector. The Digital Output could be used to send alarm whenever the IGS-5225-16T4S has port link-down or power failure. Effective Alarm Alert for Better Protection The IGS-5225-16T4S supports a Fault Alarm feature which can alert the users when there is something wrong with the switches. With this ideal feature. the users would not have
