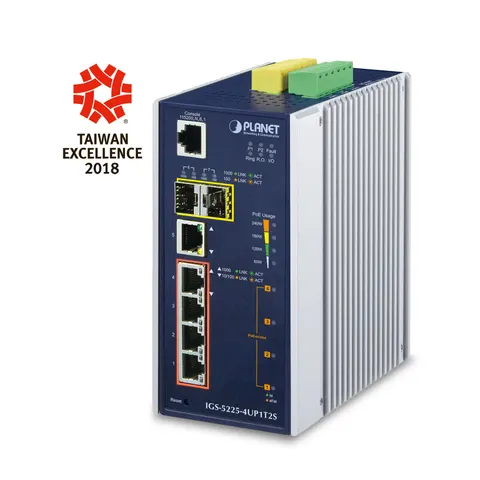

PLANET IGS-5225-4UP1T2S network switch Managed L2+ Gigabit Ethernet (1

Outstanding 802.3bt PoE++ Solution for Hardened Environment Complying with the IEEE 802.3bt Power over Ethernet Plus Plus technology. the latest version of PLANET IGS-5225-4UP1T2S L2+ Industrial Managed PoE++ Switch features four 10/100/1000BASE-T 802.3bt PoE++ ports with each port powering up to 95 watts. one extra 10/100/1000BASE-T copper port and two 100/1000BASE-X SFP interfaces in a rugged IP30 metal case for stable operation in heavy industrial demanding environments. It supports rich PoE operation modes including 90-watt 802.3bt type-4 PoE++ ports. 95-watt PoH (Power over HD-BASE-T) mode and 4-pair force mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field. Being able to operate under wide temperature range from -40 to 75 degrees C. the IGS-5225-4UP1T2S can be placed in almost any difficult environment. The IGS-5225-4UP1T2S also allows either DIN rail or wall mounting for efficient use of cabinet space. 802.3bt PoE++ – 90~95-watt Power over 4-pair UTP Solution As the IGS-5225-4UP1T2S adopts the IEEE 802.bt PoE++ standard and PoH technology. it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). It possesses triple amount of power capability than the conventional 802.3at PoE+ and is an ideal solution to satisfy the growing demand for higher power consuming network PDs. such as: - PoE PTZ speed dome cameras - Network devices - Thin clients - AIO (all-in-one) touch PCs. point of sale (POS) and information kiosks - Remote digital signage displays - PoE lightings Advanced PoE Power Output Mode Management To meet the demand of various powered devices consuming stable PoE power. the IGS-5225-4UP1T2S provides five different PoE power output modes for selection. - 90W 802.3bt PoE++ Power Output Mode(Pins 1. 2. 3. 6 + Pins 4. 5. 7. 8) - 95W UPOE/PoH Power Output Mode(Pins 1. 2. 3. 6 + Pins 4. 5. 7. 8)
