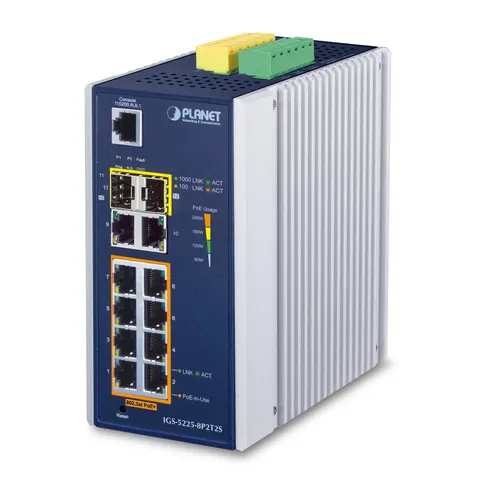

PLANET IGS-5225-8P2T2S network switch Managed L2+ Gigabit Ethernet (10

Environmentally Hardened Design PLANET Industrial 8-port Gigabit 802.3at PoE+ Switch. IGS-5225-8P2T2S. is equipped with a rugged IP30 metal case for stable operation in heavy industrial demanding environments. Thus. the IGS-5225-8P2T2S provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curbside traffic control cabinets. Being able to operate under wide temperature range from -40 to 75 degrees C. the IGS-5225-8P2T2S can be placed in almost any difficult environment. The IGS-5225-8P2T2S also allows either DIN rail or wall mounting for efficient use of cabinet space. Redundant Ring. Fast Recovery for Critical Network Applications The IGS-5225-8P2T2S supports redundant ring technology and features strong. rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology. Spanning Tree Protocol (802.1s MSTP). and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain simple Ring network. the recovery time of data link can be as fast as 20ms. High Power PoE for Security and Public Service Applications To fulfill the demand of High Power PoE for network applications with Gigabit speed transmission under wide temperature. the IGS-5225-8P2T2S provides 8 10/100/1000Mbps ports featuring IEEE 802.3at Power over Ethernet Plus (PoE+) that combines up to 36-watt power output and data per port over one Cat5E/6 Ethernet cable. As the whole system comes with a total 240-watt PoE budget. the IGS-5225-8P2T2S is designed specifically to satisfy the growing demand of higher power consuming network PDs (powered devices) such as multi-channel (802.11a/b/g/n) wireless LAN access points. PTZ (Pan. Tilt & Zoom)/Speed Dome network cameras and other PoE network devices. doubling that of the curr
