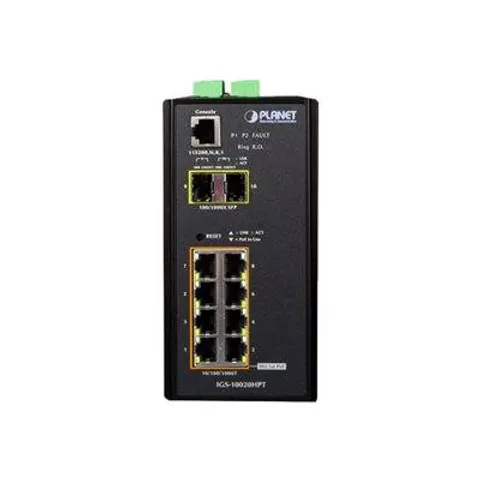

PLANET IGS-10020HPT network switch Managed L2+ Gigabit Ethernet (10/10

Environmentally Hardened Design PLANET Industrial 8-port Gigabit 802.3at PoE+ Switch. IGS-10020HPT. is equipped with a rugged IP30 metal case for stable operation in heavy industrial demanding environments. Thus. the IGS-10020HPT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curbside traffic control cabinets. Being able to operate under wide temperature range from -40 to 75 degrees C. the IGS-10020HPT can be placed in almost any difficult environment. The IGS-10020HPT also allows either DIN rail or wall mounting for efficient use of cabinet space. Redundant Ring. Fast Recovery for Critical Network Applications The IGS-10020HPT supports redundant ring technology and features strong. rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology. Spanning Tree Protocol (802.1s MSTP). and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. The IGS-10020HPT also protects customer’s industrial network connectivity with switching recovery capability that is used for implementing fault tolerant ring and mesh network architectures. If the Industrial network was interrupted accidentally. the fault recovery times could be less than 50ms to quickly bring the network back to normal operation. Vehicle and ITS Industrial Ethernet PoE Solution The IGS-10020HPT is compliant with E-Mark requirements. making it suitable for a variety of in-vehicle applications and surveillance system. To facilitate the 802.3at PoE+ usage with commonly used 12~48V DC power input for transportation and industrial-level applications. the IGS-10020HPT adopts 12~48V DC to 52V power boost technology to solve power source issue but does not require special power supplies. It fulfills the needs of power plus da
