PLANET IGS-5225-8P2S2X network switch Managed L3 Gigabit Ethernet (10

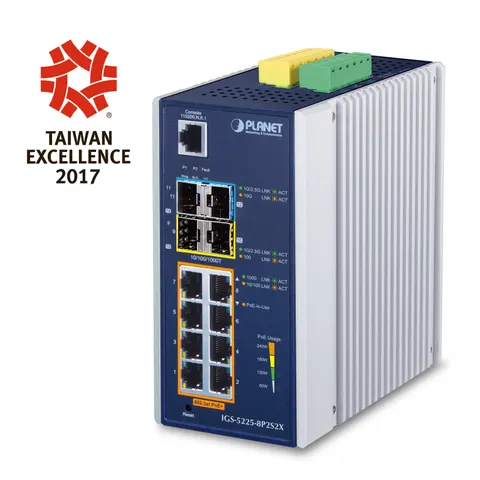

Layer 3 Capability and 10G Uplinks PLANET IGS-5225-8P2S2X is the smallest 10G uplink Layer 3 managed PoE switch preferably designed for industrial networks. Based on its 10Gbps big pipe connectivity to core networks. the IGS-5225-8P2S2X. equipped with 8 Gigabit ports featuring 36-watt 802.3at PoE+ and two 10Gbps SFP+ uplink slots. meets the demands of high power consumption and high bandwidth for 11ac Gigabit Wi-Fi APs and other PoE applications like those requiring heavy traffic loading. With a rugged IP30 metal case and wide temperature range from -40 to 75 degrees C. the IGS-5225-8P2S2X is able to stably operate in heavy Industrial demanding environments. Thus. the IGS-5225-8P2S2X provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curbside traffic control cabinets. The IGS-5225-8P2S2X also allows either DIN-rail or wall mounting for efficient use of cabinet space. Redundant Ring. Fast Recovery for Critical Network Applications The IGS-5225-8P2S2X supports redundant ring technology and features strong. rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology. Spanning Tree Protocol (802.1s MSTP). and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a ring network. the recovery time of data link can be as fast as 10ms. Flexible and Extendable 10Gb Ethernet Solution 10G Ethernet is a big leap in the evolution of Ethernet. Each of the 10G SFP+ slots in the IGS-5225-8P2S2X supports triple speed and 10GBASE-SR/LR. 2500BASE-X or 1000BASE-SX/LX. providing broad bandwidth and powerful processing capacity. With its 2-port. 10G Ethernet link capability. the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or
