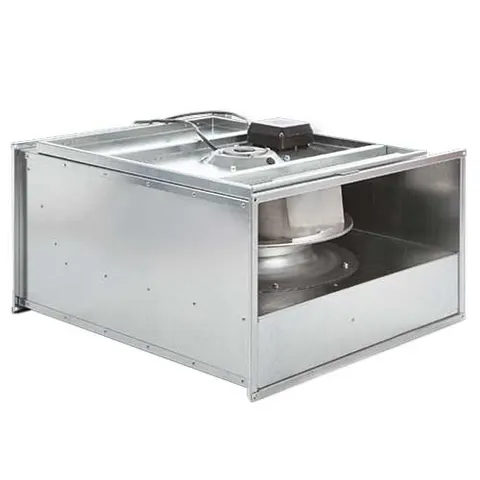

S&P IRB/4 355 Inline Rectangular Duct Fan

The S&P IRB/4-355 is a single-phase inline rectangular duct fan built for general ventilation where a fan must sit within a rectangular ducted system or where installation space is tight. It uses a high performance, dynamically balanced backward curved centrifugal impeller in a heavy gauge galvanised steel casing, delivering up to 5600 m³/h of free air. The external rotor motor carries Class F insulation with thermal protection and runs on a 230V-50Hz supply. Speed is controllable by transformer, and the hinged inspection door plus remote IP55 terminal box make cleaning, maintenance and control wiring straightforward. The fan can be mounted in any orientation. High performance dynamically balanced centrifugal impeller Inspection door for easy cleaning and maintenance Can be installed in any orientation Remote IP55 terminal box for external controls Speed controllable by transformer Specifications Brand S&P Model IRB/4-355 Type Inline rectangular duct fan Duct size 700 x 400 mm Max airflow 5600 m³/h Phase Single phase 230V-50Hz Pole 4 pole Motor AC external rotor, Class F Max power 845 W Warranty 2 Years Manuals & GuidesS&P IRB Inline Rectangular Duct Fan Datasheet
