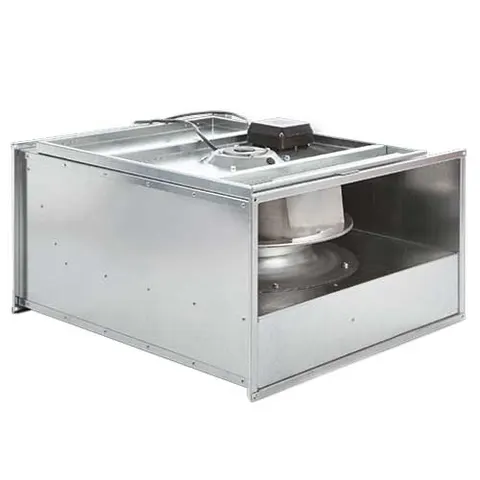

S&P IRT/4-400B Inline Rectangular Duct Fan

The S&P IRT/4-400B is a three-phase inline rectangular duct fan built for general ventilation where a fan must sit within a rectangular ducted system or where installation space is tight. It uses a high performance, dynamically balanced backward curved centrifugal impeller in a heavy gauge galvanised steel casing, delivering up to 9580 m³/h of free air. The external rotor motor carries Class F insulation with thermal protection and runs on a 230/400V-50Hz three-phase supply. Speed is controllable by transformer or frequency drive, and the hinged inspection door plus remote IP55 terminal box make cleaning, maintenance and control wiring straightforward. The fan can be mounted in any orientation. High performance dynamically balanced centrifugal impeller Inspection door for easy cleaning and maintenance Can be installed in any orientation Remote IP55 terminal box for external controls Speed controllable by transformer or frequency drive Specifications Brand S&P Model IRT/4-400B Type Inline rectangular duct fan Duct size 800 x 500 mm Max airflow 9580 m³/h Phase Three phase 230/400V-50Hz Pole 4 pole Motor AC external rotor, Class F Max power 2142 W Warranty 2 Years Manuals & GuidesS&P IRT Inline Rectangular Duct Fan Datasheet
