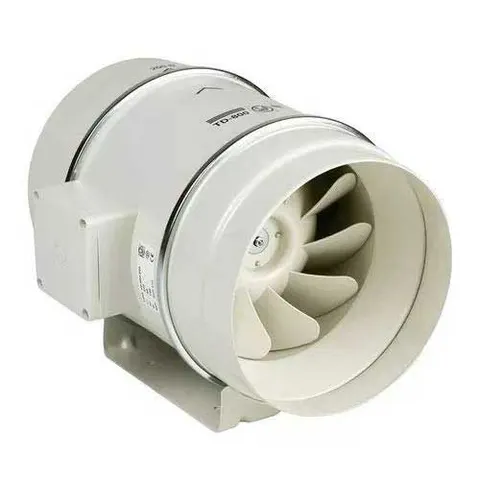

S&P TD-2000/315 Inline Mixed Flow Duct Fan Single Phase - 315mm

The S&P TD-2000/315 is a low-profile in-line mixed-flow duct fan from the MIXVENT-TD range, moving up to 1800 m³/h through 315 mm duct. Its low profile makes it ideal where installation space is limited, such as false ceilings, and it can be mounted at any point along the duct. Airflow up to 1800 m³/h (free air); 315 mm connection External-rotor AC motor (230 V, 1~, 50 Hz); Two/three-speed, voltage speed-controllable Epoxy-polyester steel; IP44; Class I Sound pressure 49 dB(A) at 3 m; greased-for-life ball bearings; thermal overload protection Motor and impeller assembly fits/removes without dismantling the adjacent ducting Suitable for Residential and commercial extract or supply; bathrooms, toilets, offices and washrooms Installations with limited space, e.g. false ceilings and ceiling voids Installation Fits at any point along the duct in any position; the unique support bracket allows the motor/impeller assembly to be fitted or removed without dismantling the ducting. Should be installed on a suitable circuit by a qualified electrician. Specifications Brand S&P Model TD-2000/315 Type in-line mixed-flow duct fan (MIXVENT-TD) Duct connection 315 mm Airflow (max, free air) 1800 m³/h Motor External-rotor AC (230 V, 1~, 50 Hz); voltage speed-controllable Power (max) 287 W Sound pressure @ 3 m 49 dB(A) Casing Epoxy-polyester steel; IP44; Class I Max ambient -40/+60°C Manuals & GuidesS&P TD-2000/315 Datasheet
