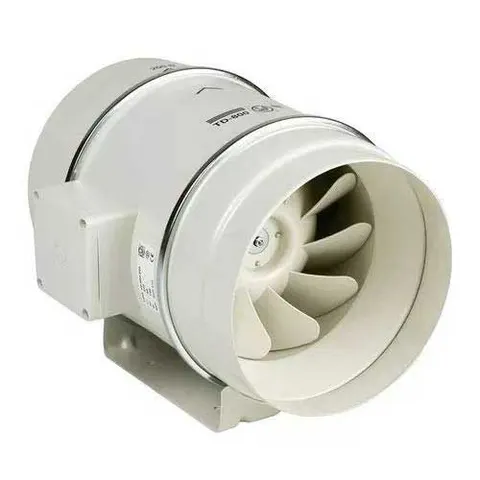

S&P TD-500/150 Inline Mixed Flow Duct Fan Single Phase - 150mm

The S&P TD-500/150 is a low-profile in-line mixed-flow duct fan from the MIXVENT-TD range, moving up to 560 m³/h through 150 mm duct. Its low profile makes it ideal where installation space is limited, such as false ceilings, and it can be mounted at any point along the duct. Airflow up to 560 m³/h (free air); 150 mm connection External-rotor AC motor (230 V, 1~, 50 Hz); Two/three-speed, voltage speed-controllable Reinforced plastic; IP44; Class II Sound pressure 35 dB(A) at 3 m; greased-for-life ball bearings; thermal overload protection Motor and impeller assembly fits/removes without dismantling the adjacent ducting Suitable for Residential and commercial extract or supply; bathrooms, toilets, offices and washrooms Installations with limited space, e.g. false ceilings and ceiling voids Installation Fits at any point along the duct in any position; the unique support bracket allows the motor/impeller assembly to be fitted or removed without dismantling the ducting. Should be installed on a suitable circuit by a qualified electrician. Specifications Brand S&P Model TD-500/150 Type in-line mixed-flow duct fan (MIXVENT-TD) Duct connection 150 mm Airflow (max, free air) 560 m³/h Motor External-rotor AC (230 V, 1~, 50 Hz); voltage speed-controllable Power (max) 53 W Sound pressure @ 3 m 35 dB(A) Casing Reinforced plastic; IP44; Class II Max ambient -20/+60°C Manuals & GuidesS&P TD-500/150 Datasheet
