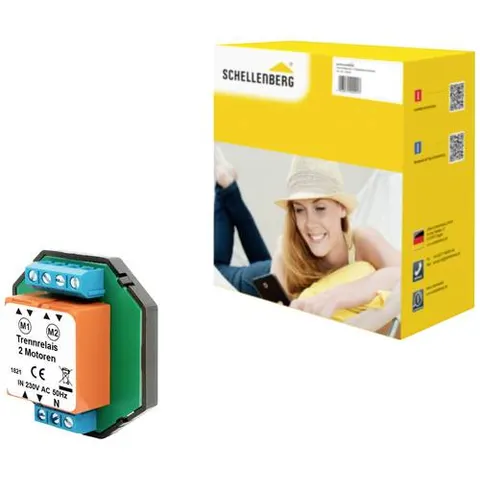

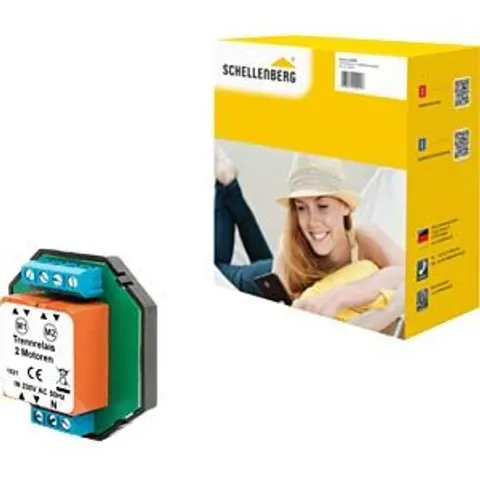

SCHELLENBERG AS 24201 - Roller shutter isolating relay, central, 2-fold

" Schellenberg roller shutter isolating relay, central, 2-gang simultaneous control of two roller shutter motors ideal for Schellenberg STANDARD and PLUS tubular motors total switching capacity of max. 6 A (3 A per drive) mounting in flush-mounted box with Ø 60 mm and 40 mm depth Mounting in surface box with a minimum of 70 x 70 mm Enables central group control of two roller shutters The roller shutter isolating relay is required if you want to control two roller shutter motors simultaneously, for example, via a switch. It is ideally suited for the group control of Schellenberg tubular motors of the STANDARD or PLUS models, but can also be used for similar roller shutter motors of other manufacturers. The roller shutter isolating relay requires an operating voltage of 230 V AC/50 Hz and has a maximum total switching capacity of 6 A, which corresponds to 3 A per roller shutter motor. The 2-fold roller shutter relay is installed in a flush-mounted box with a diameter of 60 mm and a depth of 40 mm and is only suitable for dry interiors. Alternatively, it can be installed in a surface-mounted junction box with dimensions 70 x 70 mm. Technical data Mains voltage: 230 V AC/50 Hz Control voltage: 230 V AC/50 Hz Protection class: IP20, for dry indoor areas Dimensions (W x H x D): 52.4 x 48.4 x 22.4 mm Design: flush-mounted Switching current (inductive): 6 A/2x 3 A current consumption: 10 mA terminal: 0.5 - 2.5 mm² cable rigid, 0.5 - 1.5 mm² cable flexible with wire end ferrule Pollution degree: 1 (IEC 60664-1) Overvoltage: 3 (IEC 60664-1) Temperature range: 0 °C to +60 °C Package contents 1 x roller shutter relay 1 x mounting instructions "
