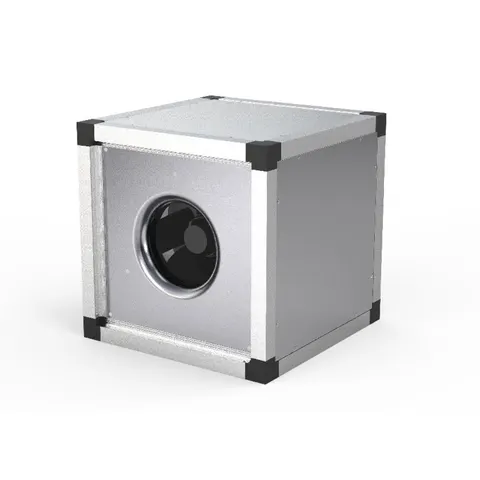

Systemair MUB 016 200EC Multibox Fan EC Motor - 1 Phase

Self supporting aluminium frame construction with highly impact resistant PA6 corners. 30 mm glass wool acoustic and thermal insulation. Radial impeller with backward curved blades. The EC motor gives infinitely variable speed control as standard, without the need for a separate transformer or frequency inverter.• EC motor with integrated speed control• Modular system• Integral thermal contacts• Low sound level• Flexible airflow direction due to removable panels• Installation in any mounting position• Maintenance-free and reliable Suitable forSupply or extract duty in commercial and light industrial ventilation. Suitable for commercial kitchen extract systems when positioned 3 metres from the canopy. InstallationCan be installed in any mounting position. Removable panels allow the airflow direction to be reconfigured on site for straight-through or 90° discharge. Integral thermal contacts are fitted for connection to a motor protection switching device. Specifications Brand Systemair Model MUB 016 200EC Article number 276629 Motor EC Phase 1 Phase, 230V, 50/60Hz Maximum airflow 1,068 m³/h (0.2967 m³/s) Input power 153 W Input current 1.22 A Impeller speed 3,062 rpm Max air temperature 55 °C Enclosure class IP54 Insulation class B Weight 15 kg ErP ErP 2018 ready Warranty 1 Year Manufacturer
