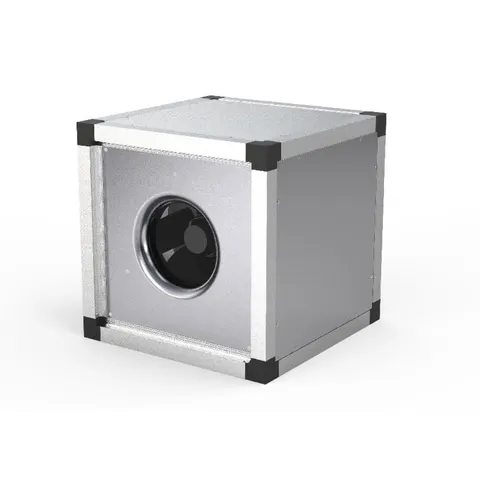

Systemair MUB 025 355EC Multibox Fan EC Motor - 1 Phase

Self supporting aluminium frame construction with highly impact resistant PA6 corners. 30 mm glass wool acoustic and thermal insulation. Radial impeller with backward curved blades. The EC motor gives infinitely variable speed control as standard, without the need for a separate transformer or frequency inverter.• EC motor with integrated speed control• Modular system• Integral thermal contacts• Low sound level• Flexible airflow direction due to removable panels• Installation in any mounting position• Maintenance-free and reliable Suitable forSupply or extract duty in commercial and light industrial ventilation. Suitable for commercial kitchen extract systems when positioned 3 metres from the canopy. InstallationCan be installed in any mounting position. Removable panels allow the airflow direction to be reconfigured on site for straight-through or 90° discharge. Integral thermal contacts are fitted for connection to a motor protection switching device. Specifications Brand Systemair Model MUB 025 355EC Article number 37195 Motor EC Phase 1 Phase, 230V, 50/60Hz Duct connection 355 mm circular Maximum airflow 3,182 m³/h (0.884 m³/s) Input power 389 W Input current 2.36 A Impeller speed 1,638 rpm Sound pressure at 3m 53 dB(A) Max air temperature 60 °C Enclosure class IP44 Insulation class B ErP ErP 2016 and ErP 2018 ready Warranty 1 Year Manufacturer
