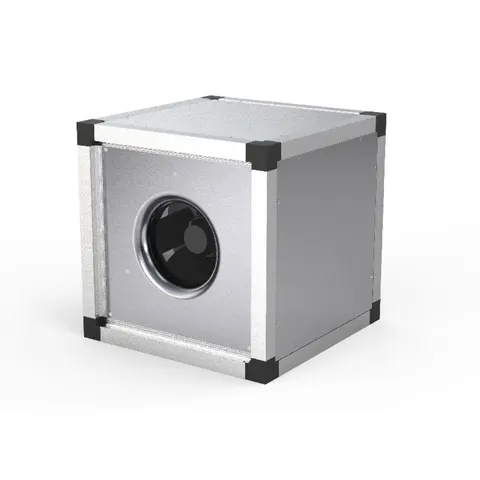

Systemair MUB 100 630EC Multibox Fan EC Motor - 3 Phase

Self supporting aluminium frame construction with highly impact resistant PA6 corners. 30 mm glass wool acoustic and thermal insulation. Radial impeller with backward curved blades. The EC motor gives infinitely variable speed control as standard, without the need for a separate transformer or frequency inverter.• EC motor with integrated speed control• Modular system• Integral thermal contacts• Low sound level• Flexible airflow direction due to removable panels• Installation in any mounting position• Maintenance-free and reliable Suitable forHigh-volume supply or extract duty in commercial and industrial ventilation. Suitable for commercial kitchen extract systems when positioned 3 metres from the canopy. InstallationCan be installed in any mounting position. Removable panels allow the airflow direction to be reconfigured on site for straight-through or 90° discharge. Integral thermal contacts are fitted for connection to a motor protection switching device. Specifications Brand Systemair Model MUB 100 630EC Article number 230507 Motor EC Phase 3 Phase, 400V, 50/60Hz Maximum airflow 19,205 m³/h (5.3347 m³/s) Input power 3,099 W (3.099 kW) Input current 5.01 A Impeller speed 1,339 rpm Max air temperature 70 °C Enclosure class IP55 Insulation class F Weight 135.5 kg ErP ErP 2018 ready Warranty 1 Year Manufacturer
