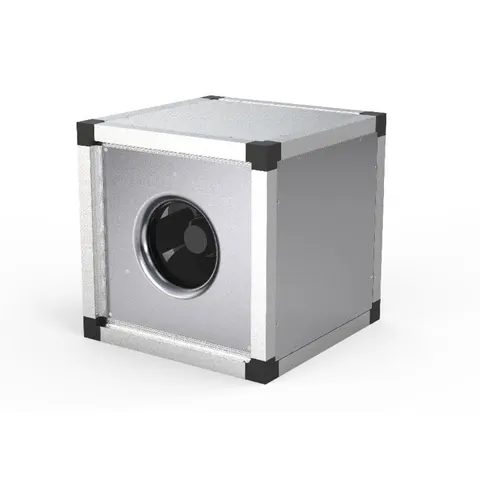

Systemair MUB 100 710EC-Poti Multibox Fan EC Motor - 3 Phase

Self supporting aluminium frame construction with highly impact resistant PA6 corners. 30 mm glass wool acoustic and thermal insulation. Radial impeller with backward curved blades. The EC motor gives infinitely variable speed control as standard, and this variant is supplied with an integrated potentiometer for direct manual speed adjustment.• EC motor with integrated potentiometer speed control• Modular system• Integral thermal contacts• Low sound level• Flexible airflow direction due to removable panels• Installation in any mounting position• Maintenance-free and reliable Suitable forHigh-volume supply or extract duty in large commercial and industrial ventilation systems. InstallationSquare duct connection. Can be installed in any mounting position. Removable panels allow the airflow direction to be reconfigured on site for straight-through or 90° discharge. Integral thermal contacts are fitted for connection to a motor protection switching device. Specifications Brand Systemair Model MUB 100 710EC-Poti Article number 472962 Motor EC with integrated potentiometer Phase 3 Phase, 400V, 50/60Hz Duct connection Square Maximum airflow 30,939 m³/h (8.5942 m³/s) Input power 8,015 W (8.015 kW) Input current 11.93 A Impeller speed 1,486 rpm Max air temperature 40 °C Enclosure class IP55 Insulation class F Weight 163.2 kg ErP ErP 2018 ready Warranty 1 Year Manufacturer
